Verification

Why use verification?#

Sometimes you have an important requests and you want to make sure that the response is correct. If so, you can use DRPC verification feature to achieve consensus between your providers.

In this case we will send your request to several providers and wait for their responses. Then we will compare the responses and if they are equal, we will return the response to you.

For verification dRPC will perform several steps:

1. Send the request to the providers.
2. Check the signature of the response by comparing it using the public key of the provider.
3. Verify that responses are equal by comparing the result data.

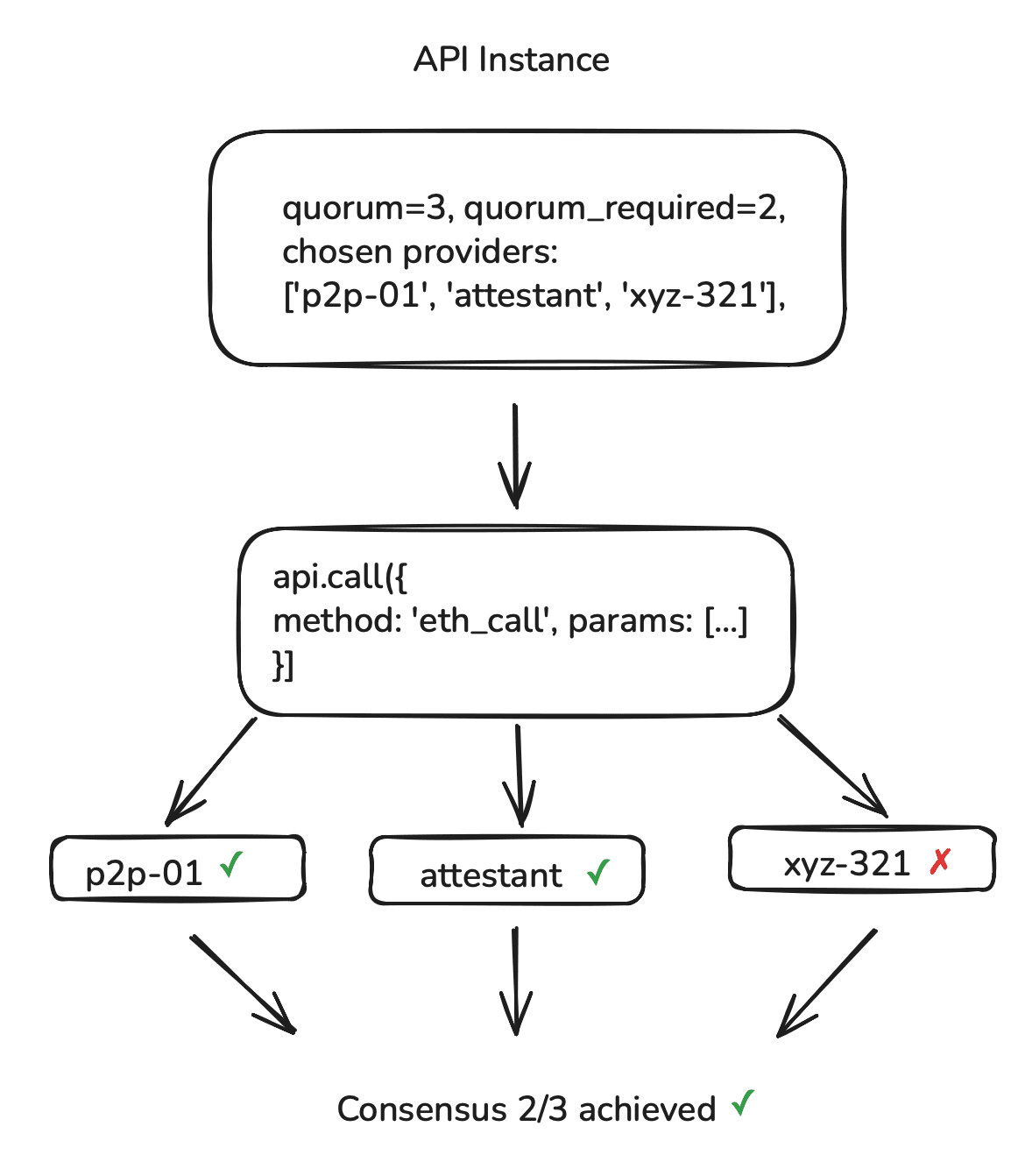

The example above shows that dRPC has received 3 responses from the providers, and 2 of them are equal (considering signature checking and result data checking).

How to use#

Verification is supported for most JSON-RPC and REST requests. It is not available for WebSocket and some methods (eth_chainId, eth_blockNumber, web3_clientVersion) that are processed on the proxy side

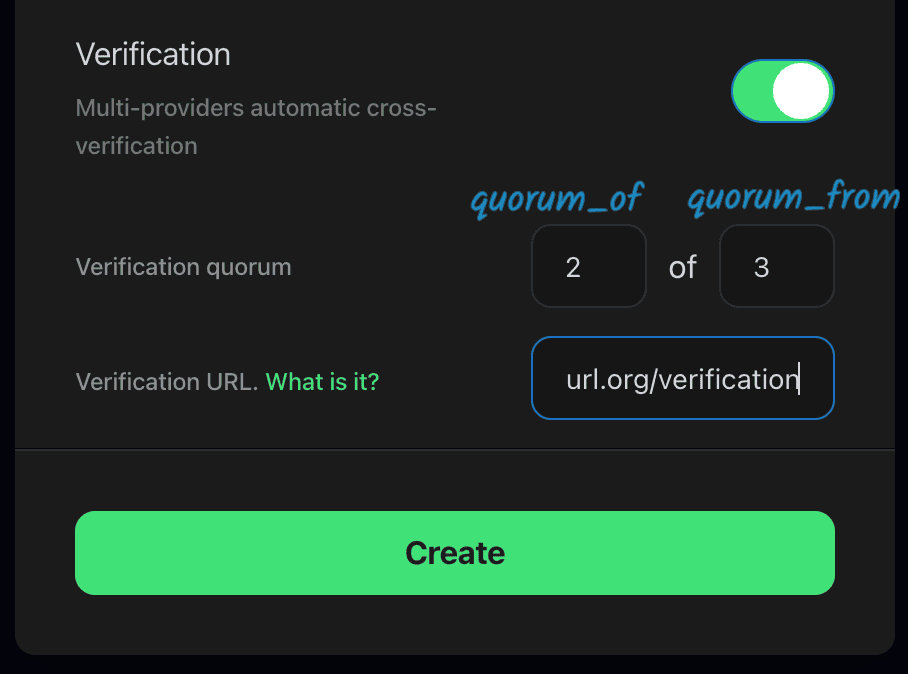

To enable verification, it's needed to add the following query parameters to the URL:

• quorum=3 — the number of providers to query
• quorum_required=2 — the number of identical responses required to return a result

The service will query multiple providers and wait until it receives the required number of matching responses. Once enough matching responses are collected, dRPC attaches one response header per participating provider so that you can independently re-verify every signature on the client side.

Each signature header has the following shape:

• Header name: qr<index>-id-<request_id>, where <index> is the zero-based position of the signature in the quorum (qr0, qr1, ...) and <request_id> is the JSON-RPC id of your request.
• Header value: <provider_id>(<upstream_id>)_nonce_<nonce>_sig_<signature>, where:
  • <provider_id> — identifier of the provider that signed the response (e.g. drpc-core@EU-West#1),
  • <upstream_id> — identifier of the concrete upstream inside that provider which actually produced the response (e.g. eth_vel-frank-n01),
  • <nonce> — unique nonce mixed into the signed payload to prevent replay,
  • <signature> — ECDSA signature over the response body produced with the provider's private key. It can be verified against the provider's public key from the registry of known providers (opens in a new tab).

If the number of identical responses is lower than quorum_required, the request will fail with an error and no signed headers are returned.

Request example:

curl -v --location "https://lb.drpc.live/ethereum/$DKEY?quorum=3&quorum_required=2" \
--header 'Content-Type: application/json' \
--data '{
"method": "eth_getBlockReceipts",
"params": [
"0x12345e"
,
"id": 1,
"jsonrpc": "2.0"
}'

Headers example (two signatures for a request with id: 1, one per matching provider):

< qr0-id-1: drpc-core@EU-West#1(eth_vel-frank-n01)_nonce_14484681713855751539_sig_a9dda5602a968eeea64b079eebaff5cd32ce1094721601829727562937d7fb15d6f7b43bbce801c6c90c381a5f6bec2ca4205d61139e0965081e489bb8907360103d3abacd9965b6a6ca09bf543a80d2a76d3c6eb5962f5749edee267608d63da21982d6dfc12952b7307cf761b003aa8f5996ddd6b7850d383cb1369312e697319e7ef405a0a858ae25e0cf448215ee525e4371d860f958b0bbc429be10c79477024e295e0480c1b2fccab34ea34f2e8daa55464a8e7538ac84c0f8e0608d1e02bd5d127bbd6b6e58e7ec4121efdc32961c42c0771a073606d5e3479b780d918196310428abf0fc2c825fd60b38538b15c3a832fadd44d95f05e4f9cd35babf
< qr1-id-1: drpc-warp@EU-West#0(all-eth)_nonce_1840315633162573200_sig_30e9580c7e219e8552d1dc5e9813648515d281fd23b1b7fe2c06a182bb5dbcaccbd1c1df04a40ecddeb041bd7f30026eb51bd7096cbad2188ed05009fa82fcaf230b7e2e415a9fc73de44447341ef0a1ac9cb810759364b8818b45cd41f9a679a316169f408f1e82cb2e16faad1eedf31bff3c0221dcdee2c0fd0c7885c7771434bae25b5403457b20c2cdcd1655a8d43b63ada056ee7033252c63224a68172d1043e39c0f314b88253bc97120a54c9de40c61f4ca748e76de55c0083c8ade6a5a1847176bfff816c63cf049531752e89a5b78a175599a855850097b8aeea4c1f9bf4a3133b2ab204cd950275bc15fe19f4982d348a72b5accc6ca79ed2de7cc

In the example above, drpc-core@EU-West#1(eth_vel-frank-n01) and drpc-warp@EU-West#0(all-eth) follow the provider_id(upstream_id) format — drpc-core@EU-West#1 and drpc-warp@EU-West#0 are the provider identifiers, while eth_vel-frank-n01 and all-eth are the upstreams inside those providers that actually produced the matching responses. Each header carries that provider's nonce and ECDSA signature over the final response body.

NodeCore#

When using verification together with NodeCore (opens in a new tab), provider signatures are validated automatically on the NodeCore side before the response reaches your client. Full quorum signature verification in NodeCore is described here (opens in a new tab).

Step-by-step guide

Follow these steps to run verified requests through your own NodeCore instance:

1. Configure a dRPC upstream in NodeCore

Quorum is only supported against dRPC upstreams, so your nodecore.yml must include at least one dRPC upstream for the chain you want to query. A minimal config with a private dRPC endpoint looks like this:

upstream-config:
  upstreams:
    - id: drpc-ethereum
      chain: ethereum
      connectors:
        - type: json-rpc
          url: https://lb.drpc.live/ethereum/${DRPC_KEY}

2. Start NodeCore

Run NodeCore locally (or in your infrastructure) pointing at the config above:

docker run -d --name nodecore --restart always \
  -p 9090:9090 -v $(pwd)/nodecore.yml:/nodecore.yml \
    drpcorg/nodecore:latest

3. Send the request with quorum parameters

Add quorum and quorum_required as query parameters when calling your NodeCore endpoint. NodeCore forwards them to the dRPC upstream and verifies the returned signatures automatically:

curl --location 'http://localhost:9090/queries/ethereum?quorum=3&quorum_required=2' \
  --header 'Content-Type: application/json' \
  --data '{
    "id": 1,
    "jsonrpc": "2.0",
    "method": "eth_getBlockByNumber",
    "params": ["latest", false]
  }'

4. Handle the response

• On success NodeCore returns the standard JSON-RPC payload only after at least quorum_required provider signatures have been verified against the embedded registry of known public keys.
• On failure the client receives a JSON-RPC error with code -32010 and a reason such as missing_signatures, insufficient_signatures, invalid_signature, unknown_provider, or not_supported.

5. (Optional) Monitor verification outcomes

NodeCore exposes per-request verification metrics via Prometheus at the nodecore_quorum_verifications_total{chain, method, status, reason} counter, which is useful for alerting when signature checks start failing.

Verifying signatures yourself#

If you want to reproduce the check that NodeCore performs — i.e. prove on the client side that each QR* header was really produced by the declared provider and covers exactly the response you got — follow the steps below. This is the same algorithm NodeCore runs internally.

1. Parse the header name

Match the header name against QR<N>-id-<request_id> (case-insensitive). Extract:

• <N> — the 0-based index of the signature in the quorum,
• <request_id> — must be equal to the JSON-RPC id of the request you sent. If it doesn't match, reject the header as a replay from another request.

2. Parse the header value

The value has the strict shape:

<provider_id>(<upstream_id>)_nonce_<nonce>_sig_<hex_signature>

Split it by the literal separators _nonce_ and _sig_:

• Everything before _nonce_ is the prefix. It must end with ) and contain (...); the text before ( is provider_id, the text inside the parentheses is upstream_id. Both are mandatory.
• Between _nonce_ and _sig_ is a decimal unsigned 64-bit nonce.
• Everything after _sig_ is the signature as a hex string (an optional 0x / 0X prefix is allowed). Hex-decode it into raw bytes.

Any other shape is malformed and must be rejected.

3. Look up the provider's public key

Use provider_id (verbatim, including the @region#idx suffix) as a key in the registry of known providers shipped with NodeCore at provider_keys.yaml (opens in a new tab). Each entry holds a base64-encoded X.509 SubjectPublicKeyInfo (the body of a PEM block). Base64-decode it and parse it as PKIX. You should get either an ECDSA P-256 or an RSA public key — the key type decides which verification primitive to use in step 6.

If provider_id is absent from the registry, the signature cannot be trusted.

4. Get the exact signed payload (result)

The signature is computed over the raw JSON-RPC result bytes — not the entire JSON-RPC envelope, and not a re-serialised version of it. Use the exact bytes the upstream returned; any re-encoding (whitespace, key order, number formatting) will break verification.

5. Reconstruct the wrapped message

Build the ASCII string:

DSHACKLESIG/<nonce>/<upstream_id>/<hex(sha256(result))>

where:

• DSHACKLESIG is a fixed literal prefix,
• / is the literal separator,
• <nonce> is the decimal nonce from step 2,
• <upstream_id> is the identifier from inside the parentheses (not provider_id),
• <hex(sha256(result))> is the lowercase hex encoding of the SHA-256 digest of the result bytes.

Then compute digest = sha256(wrapped_message). That digest is what the signature actually covers.

6. Verify the signature against the digest

Dispatch based on the public key type from step 3:

• ECDSA / P-256 — the signature is DER-encoded ASN.1 (SHA256withECDSA). Run ECDSA.VerifyASN1(publicKey, digest, signature).
• RSA — the signature is a PKCS#1 v1.5 fixed-size block (SHA256withRSA). Run RSA.VerifyPKCS1v15(publicKey, SHA256, digest, signature).

Only SHA-256 digests are supported.

7. Count valid signatures

Repeat steps 1–6 for every QR* header in the response. Accept the response only if the number of signatures that (a) reference a known provider, (b) match your request id, and (c) verify cryptographically is at least quorum_required. Anything less means the quorum guarantee has not been met.
